Alibaba.comWhat is the Liquid Silicone Rubber Injection Molding?

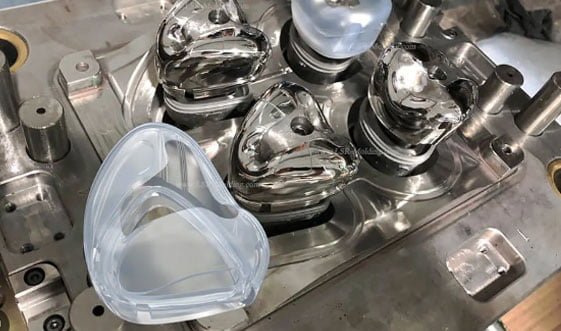

Liquid silicone rubber injection molding is a process that uses an injection machine to convert liquid silicone rubber (LSR) from liquid to solid silicone rubber products.
Liquid silicone rubber (LSR) can be processed using the liquid injection molding (LlM) process.The liquid raw material consists of two separate components mixed in a 1:1 ratio and injected into the hot mold through a cold runner system.Curing occurs within seconds, providing the advantages of fast cycle times and high-volumeproduction.
Injection molding of liquid silicone rubber (LSR) is a process to produce pliable, durable products in high volume (It is better at least 10000pcs/color),then there will be have the cost advantage.
Liquid silicone rubber (LSR) injection molding is a process for producing flexible, durable products in large quantities (preferably at least 10,000 pieces/color), which will have costadvantages.
LSR elastomers offer excellent optical clarity, durability and design flexibility while maintaining excellent mechanical properties over a wide temperature range (-50oC to 250oC).
The Liquid Silicone Rubber Injection Molding Process
1. Prepare Raw Material
LSR usually consists of two components, pigment, and additives (fillers for example), depending on the desired properties of the final product. In this step, the ingredients of the mixture are homogenized and can be combined with the temperature stabilization system for a better control of silicone temperature (ambient temperature or silicone preheating).
2. Program

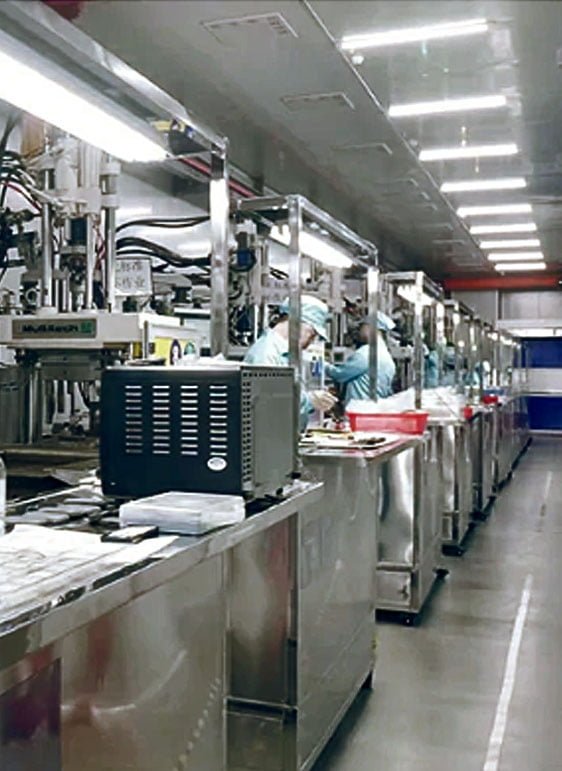

Automatic injection molding machines are custom programmed to deliver the right injection volume for each product. Align the platen and piston and close the mold, adjust temperature, pressure, injection rate and cycle time for production.
3. Injection molding
Once set up, the molds are heated to the appropriate temperature and the clamping force is applied, with the syringe, pump and supply turned off, the liquid silicone material is injected into each cavity of the mold, where they are solidified by high temperature and pressure.

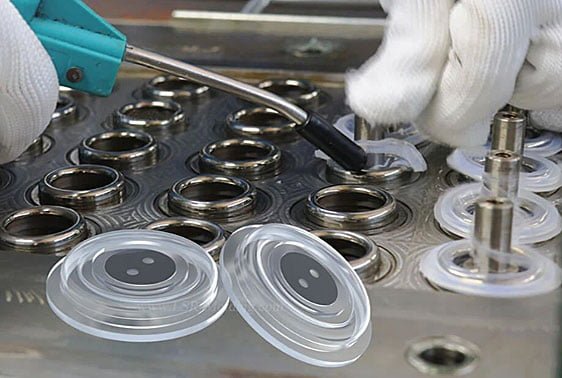

4. Demolding
Products are cooled within the mold, the mold is opened and demoulded, and finally cooled. They are removed and separated by automated robotic part removal systems, partially by workers.
The Liquid Silicone Rubber Injection Molding Advantage
- High productivity and shorter production cycles, resulting in lower unit costs.
- Allows tight tolerances on small, complex parts
- There is little post-production work required as the parts have a finished look when they pop up
- Full automation is possible, thus reducing production costs
What is the Liquid Silicone Rubber Injection overmolding?
Liquid silicone rubber overmolding is an injection molding process used to create complex and high-quality silicone products, the substrate (such as metal, plastic, or silicone) is placed into the mold, and then the LSR is injected into the mold.
LSR flows and wraps around the substrate, solidifies and vulcanizes through heating, transforms from liquid to solid, and finally forms a complete solid silicone product.
What is the advantage for liquid silicone rubber (LSR) overmolding?
1. Heat resistance, chemical resistance and electricity resistance, suitable for harsh or demanding environments.
2. Biocompatible and ideal for medical applications
3. Flexible design, the overmolding process can adapt to complex designs, different surface finishes and multi-material components.
4. Enhances product durability, provides electrical insulation, and can provide a softer, more ergonomic surface for user interaction.
5. Widely used in various fields such as Baby care, Beauty medical care, automobiles, electronics, and consumer goods.
